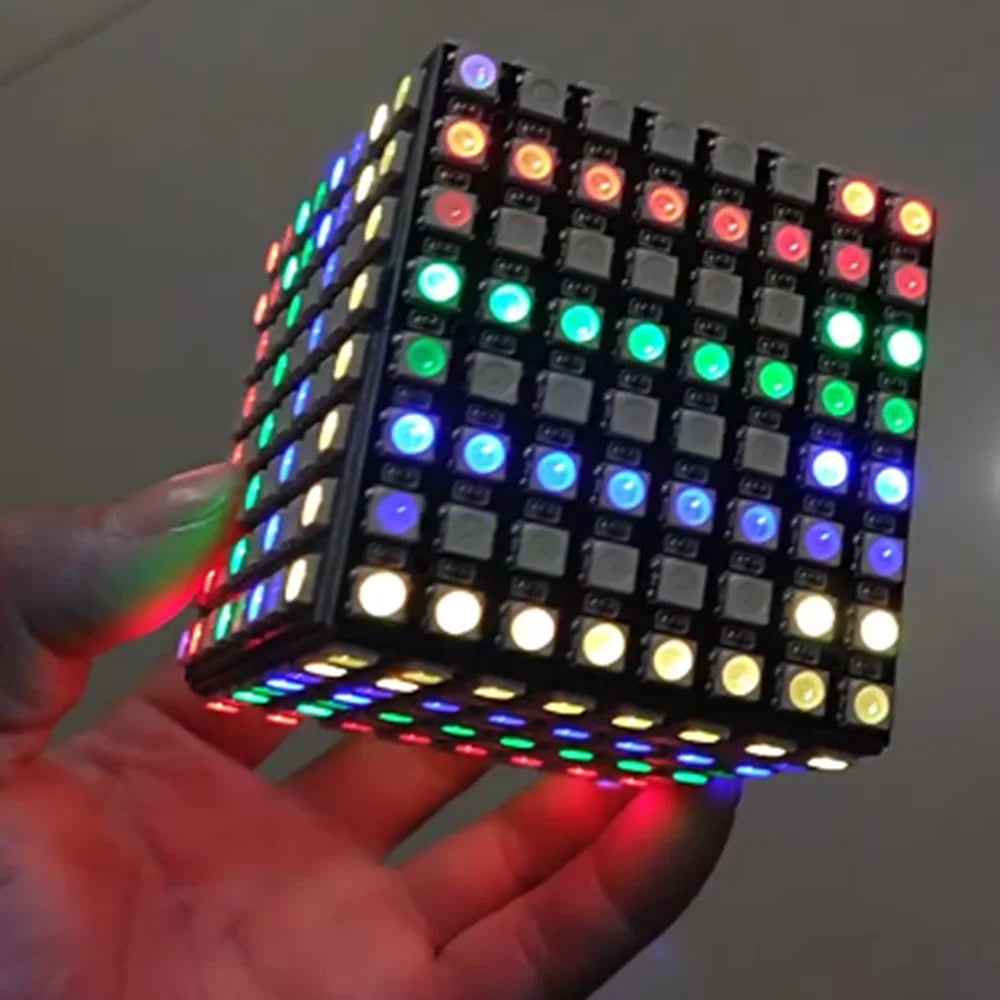

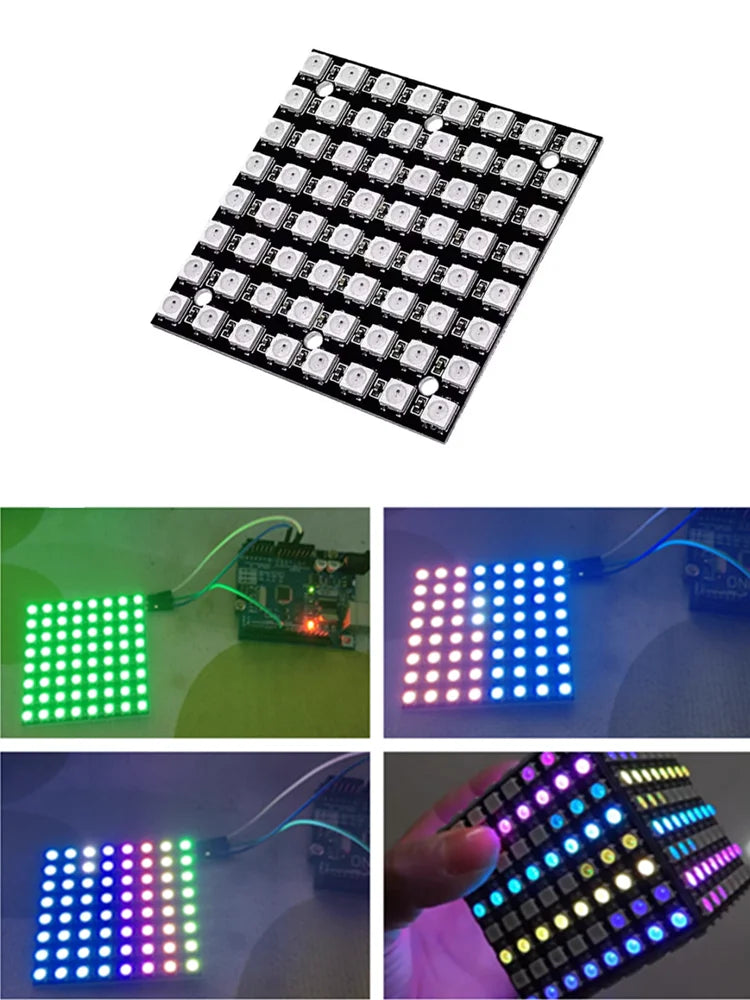

WS2812 LED 5050 RGB 8x8 4 16 25 64 Bit LED Matrix Module for DIYArduino
Default Title
$3.27
Sale price
$3.27
Regular price
$3.27
Skip to product information
WS2812 LED 5050 RGB 8x8 4 16 25 64 Bit LED Matrix Module for DIYArduino
$3.27
Sale price
$3.27
Regular price
$3.27

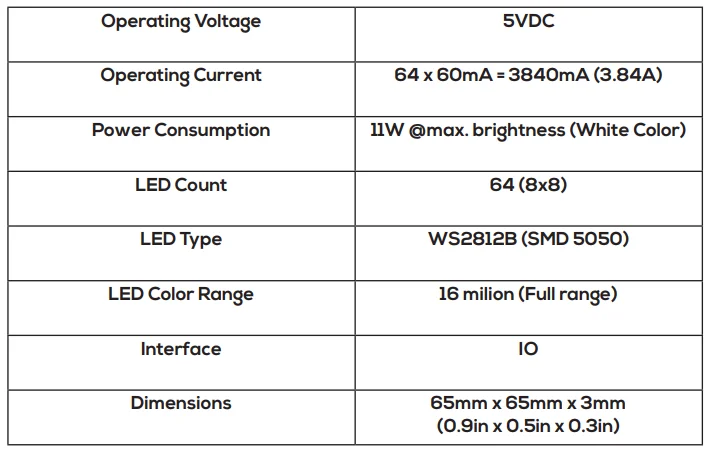

SPECIFICATIONS
Application: Computer
Brand Name: NONE
Choice: yes
Condition: New
High-concerned chemical: None
Origin: Mainland China
Package: SMD
Supply Voltage: 5V
Type: Module
is_customized: Yes

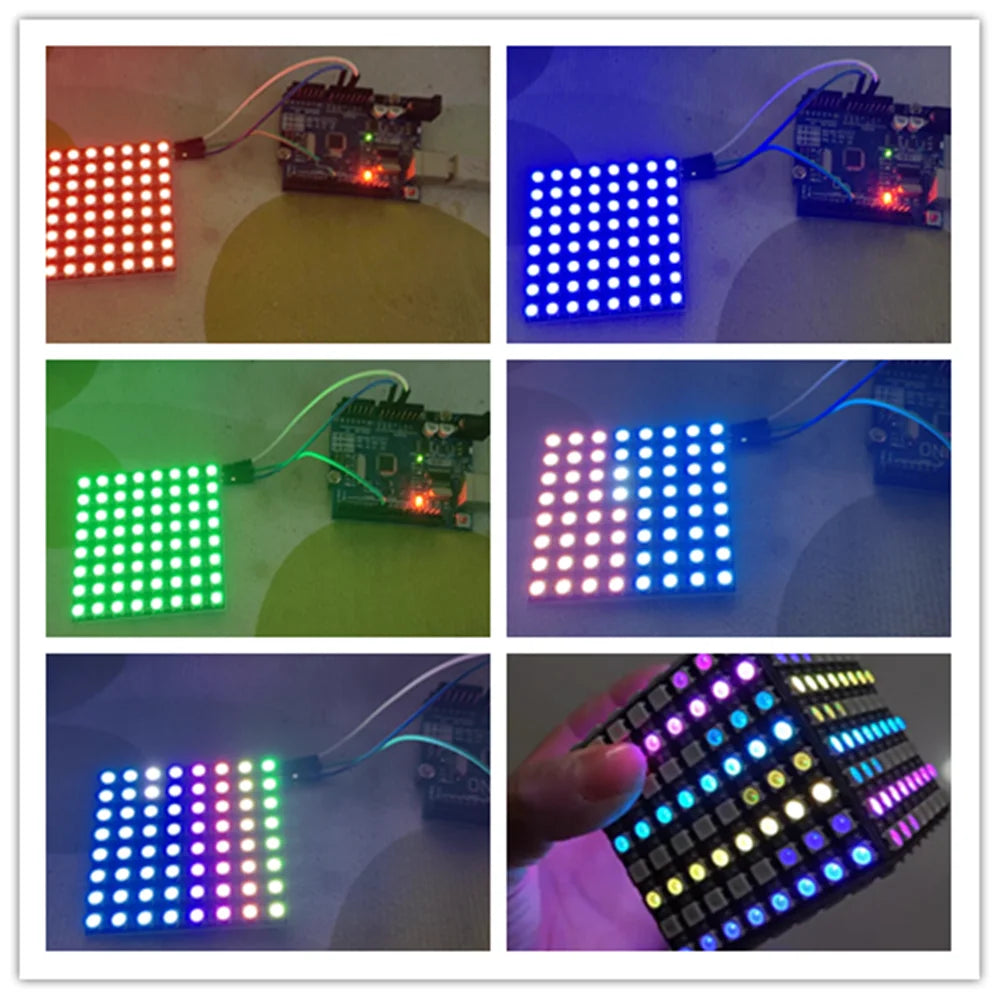

64-LED matrix consists of luminous RGB LEDs of eight per row and column. The WS2812 diodes are individually addressable and can be programmed via a single data line. For micro controllers like Raspberry Pi corresponding libraries are freely available. Please note to supply the LED board with sufficient current (min. 2 A), because at maximum luminosity up to 4 A are needed.
***64 programmable WS2812 LEDs - no separate LED driver required!

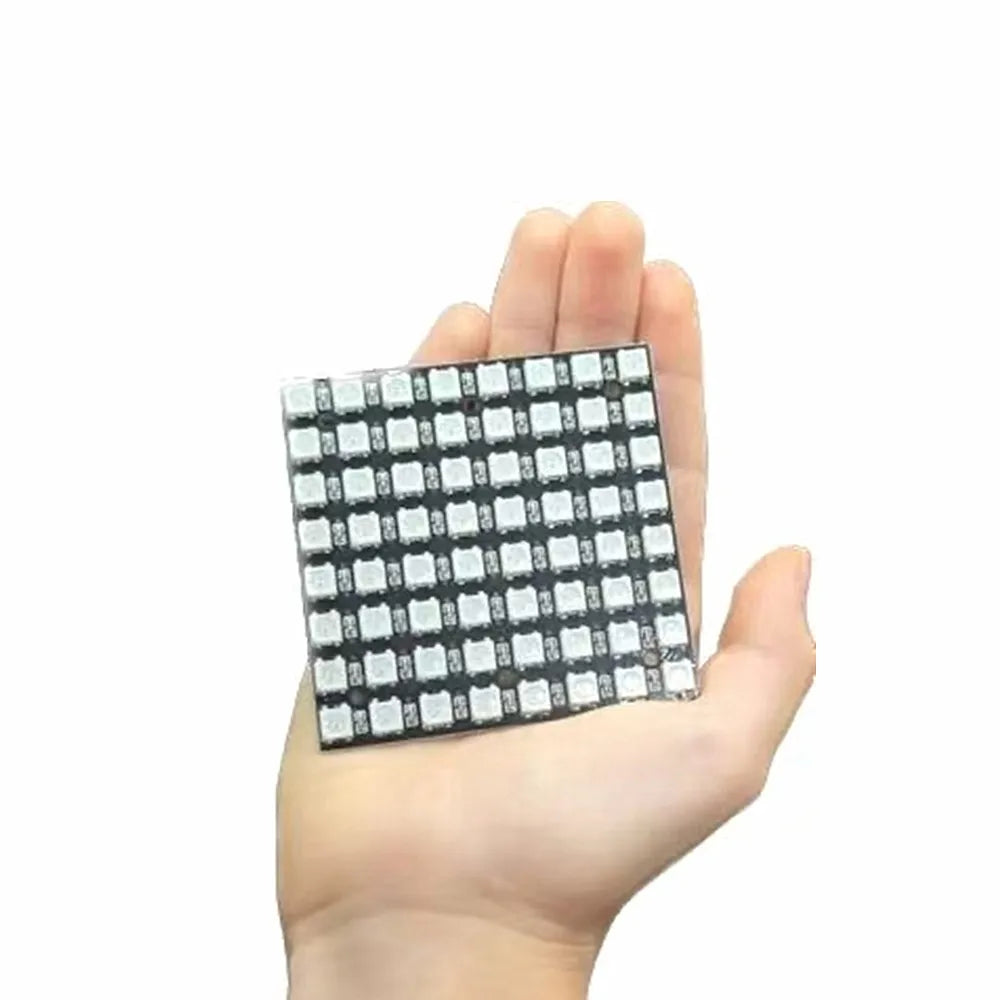

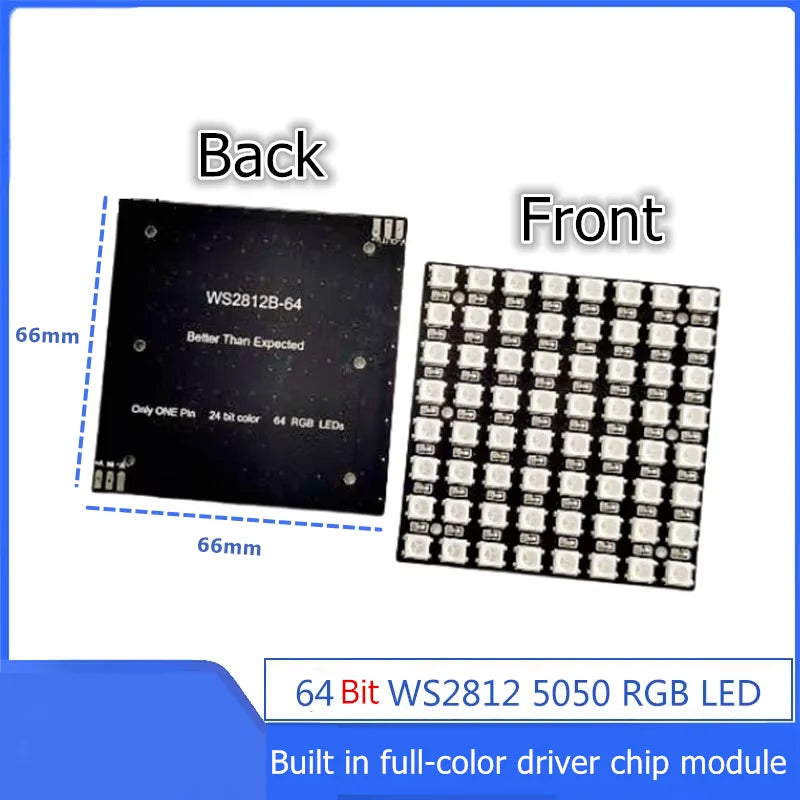

***Dimensions (LxWxH): 66 x 66 x 3 mm
***Control of all LEDs via a single data cable

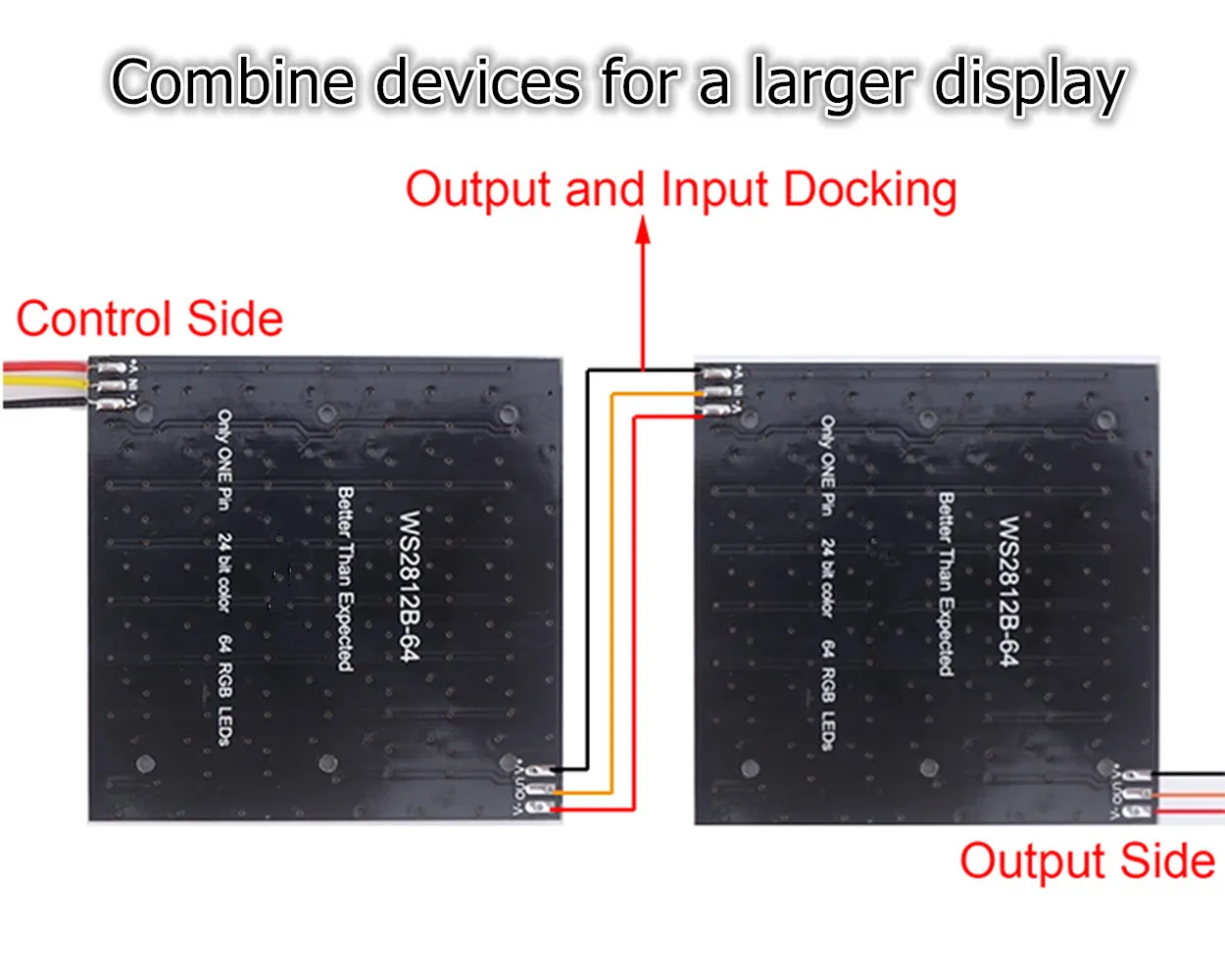

***LED matrices can be connected together to form a group
