Product Advantages:

1) High refresh rate , high brightness and high contrast which make the screen without any delay and smear phenomenon

under directly sunlight.

2)Energy saving:low electric current,high-bright lamps,equipped with PFC switching power supply that save 30% electricty.

3)The brightness can be adjustable to meet the need of changing environment

4)Wide viewing angle: The horizontal and vertical viewing angles are so wide that it is suitable for wide horizontal

5)Environment protection, antistatic, dust-proof, good heat dissipation, cost-effective .

6)Error detection and monitoring:it can monitorthe inner temperature,voltage,cooling fans etc and error detection automatically.

7) High reliability: using distributed scanning technology and module design technology that make higher reliability and stability.

8) Steady and reliable system:with strong anti-interference ability and long service life that can continually work for over 24 hours, and it's easy to operate the system.

9) Favorable effect: using dot to dot calibration technology makes the image clearer and the layering stronger

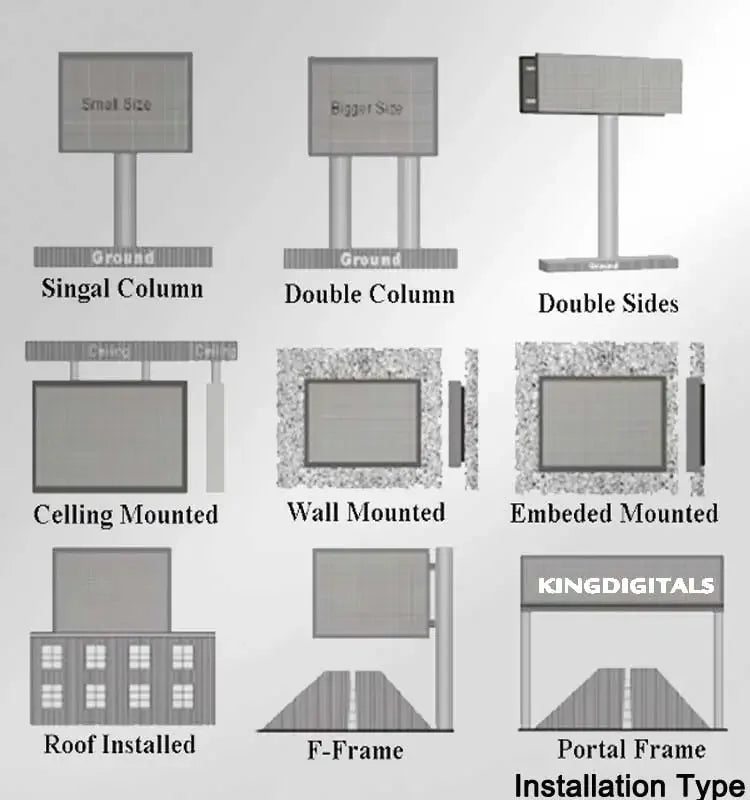

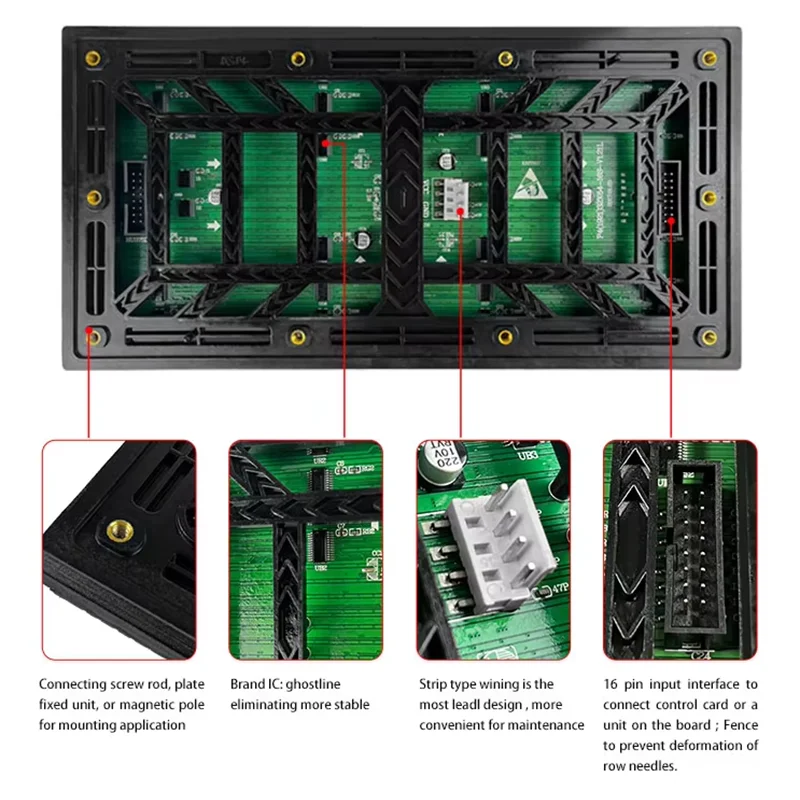

10) Convenient installation and maintenance of display modules

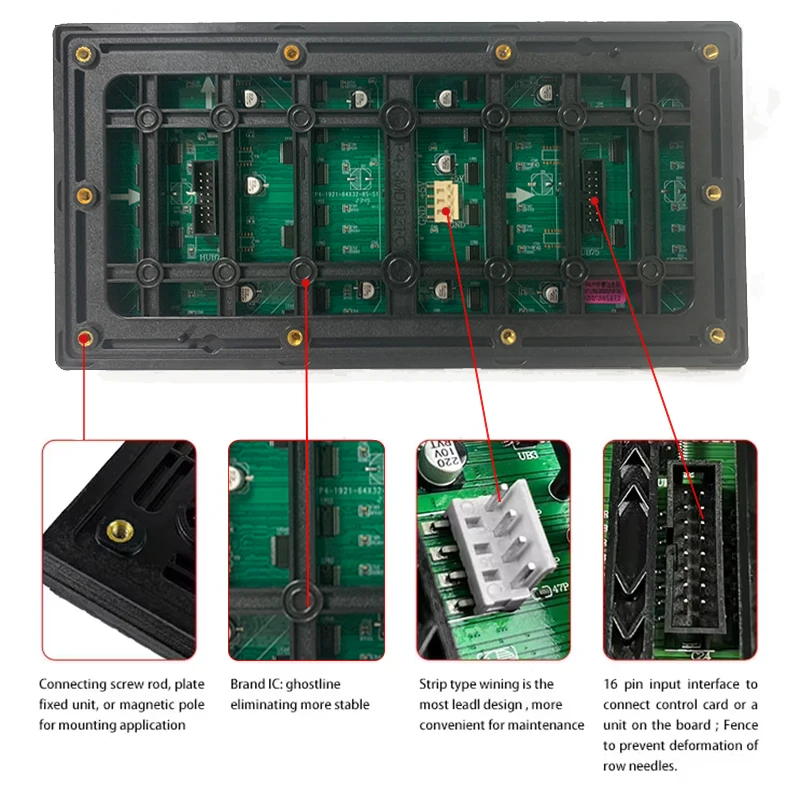

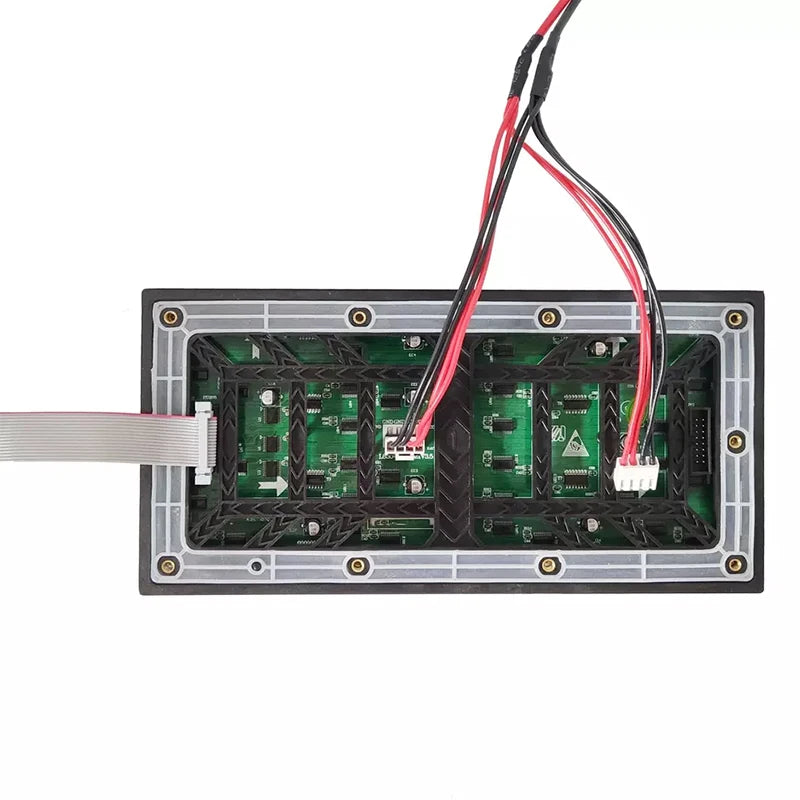

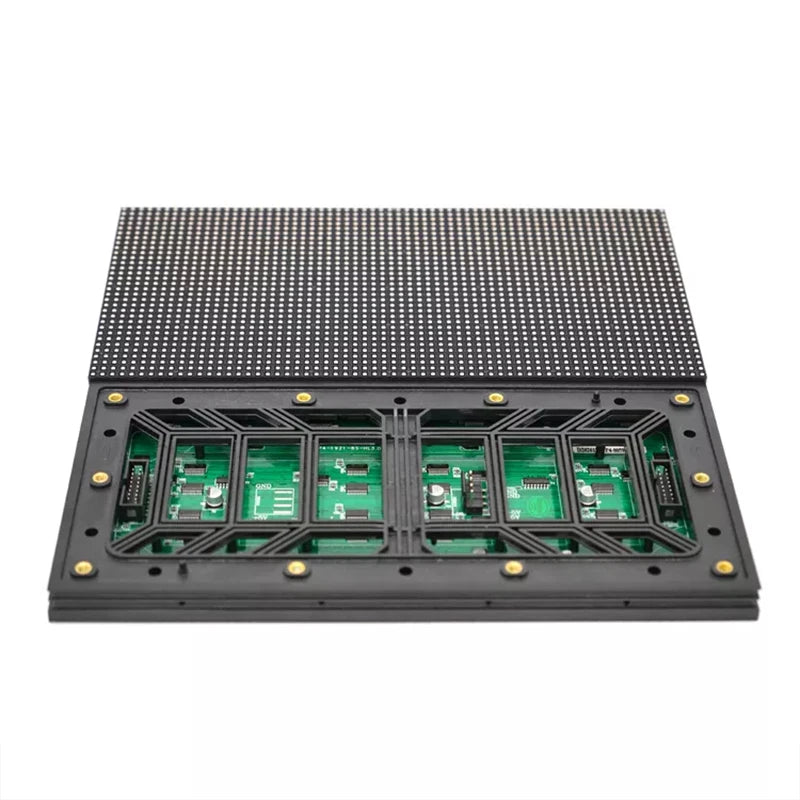

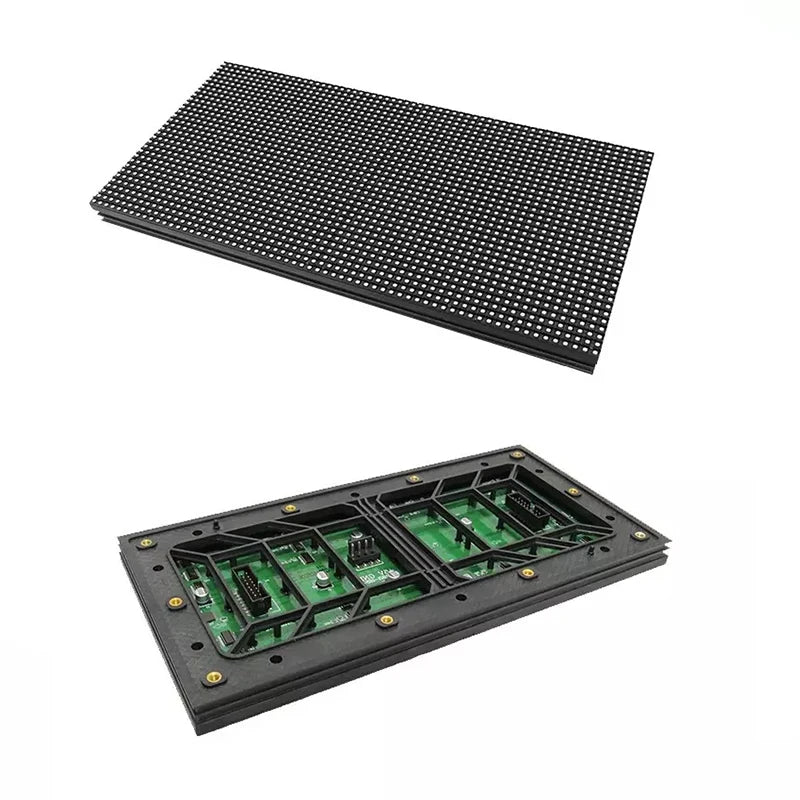

P4 outdoor led module
Pixel information	Pixel Pitch	4mm
	Technology	SMD1921 nationstar gold wire RGB
	Pixel Density	62500 Pixels/m2
	Pixel Configuration	1R1G1B
Led module	Module Size	256 mm (Width) × 128 mm(Height)
	Module Resolution	64pixels(Width) × 32 pixels(Height) = 2048pixels
Power	Input Voltage	DC5V
	Max Power Consumption	50Watt/module
	Weight	0.4KG
Viewing	Brightness	4500cd/m2
	Brightness Uniformity	Luminance Discrepancy < 5%
	Colors	16777216
	Grey Scale(Level)	4096
	Slot Between Neighboring Modules	< 1 mm
	Best Viewing Angle	Horizontal:160°,Vertical:160°
	Viewing Distance	4- 150 meters (related to screen size)
Ambient Conditions	Temperature Range	Storage:-20deg. to +75deg.; Working:-20deg. to +60deg
	Operating Humidity	10% -90%RH
	Ingression Protection Grade	Rear
Processing	Scanning Mode	1/8 Scan
	Refresh Frequency	1920HZ, Adjustable
	Signal Input	DVI, Composite Video for Live Video
