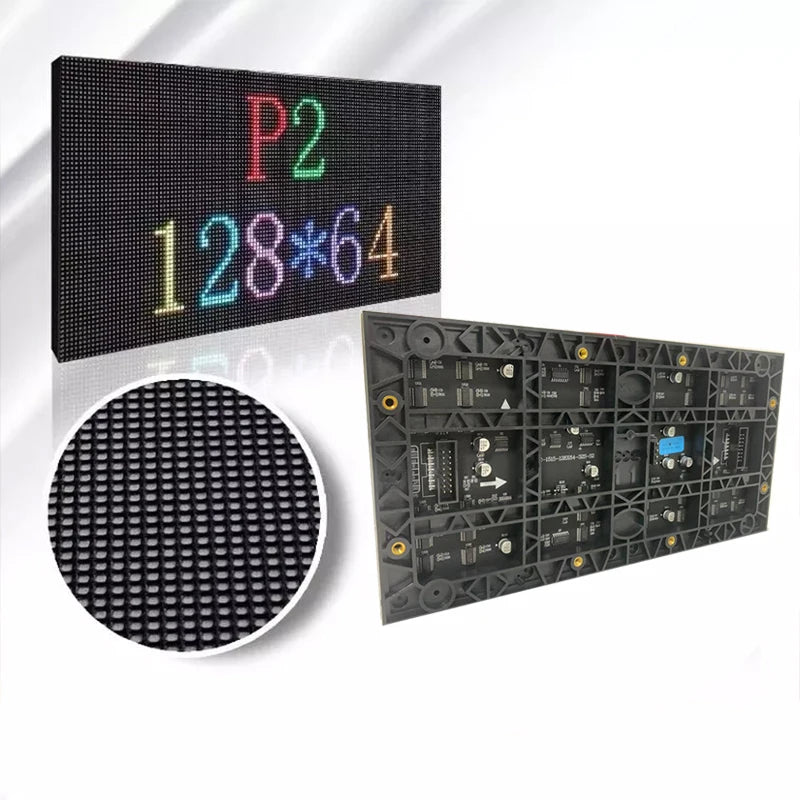

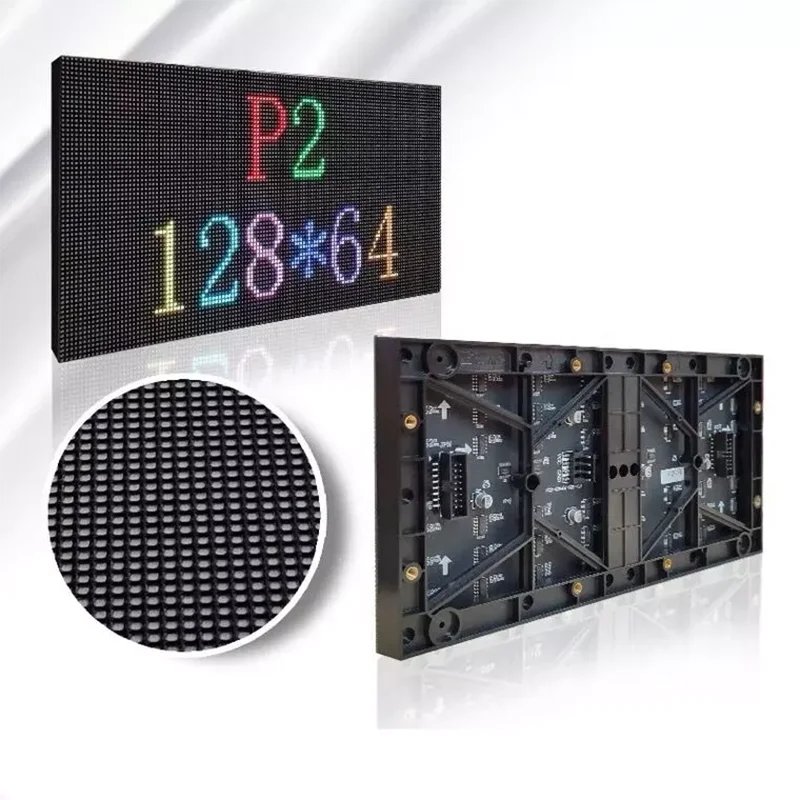

Led P2 Module indoor matrix panel 256x128mm 128x64 pixels SMD1515Light RGB full color display screen video wall pantalla 32 Scan
Led P2 Module indoor matrix panel 256x128mm 128x64 pixels SMD1515Light RGB full color display screen video wall pantalla 32 Scan
SPECIFICATIONS
Brand Name: NONE
Brightness: 800CD/square meter
Display Function: VIDEO
Features: Matrix LED module
High-concerned chemical: None
LED type: SMD1515
Life span: 100 thousand hours
Model Number: P2 Matrix Panel Module

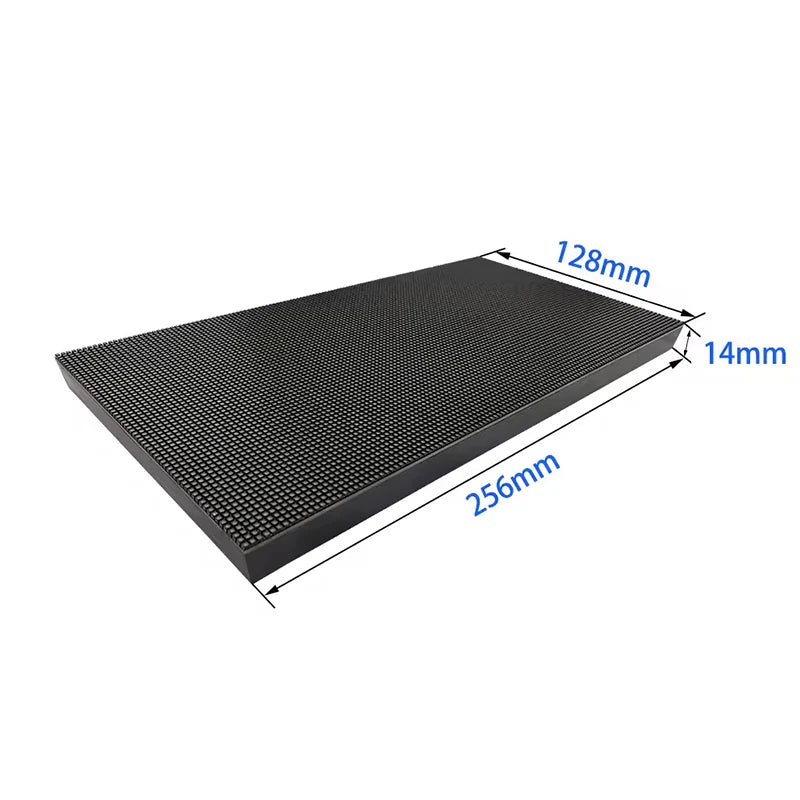

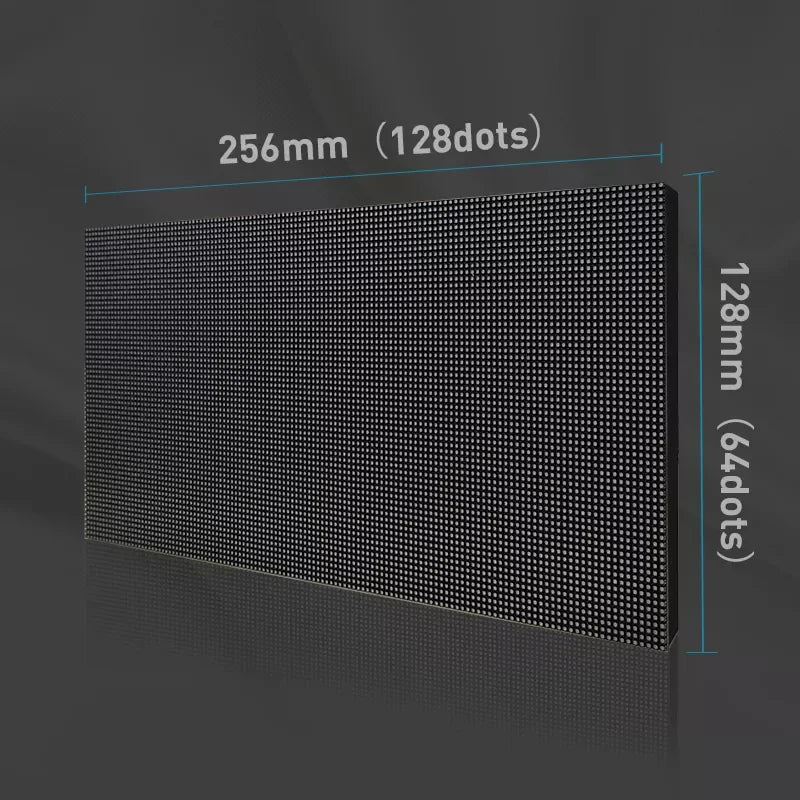

Module size: 256x128mm
Origin: Mainland China
Pixels: 128x64 DOTS
Refresh rate 3840HZ: 3840HZ
Scan mode: 1/32scan

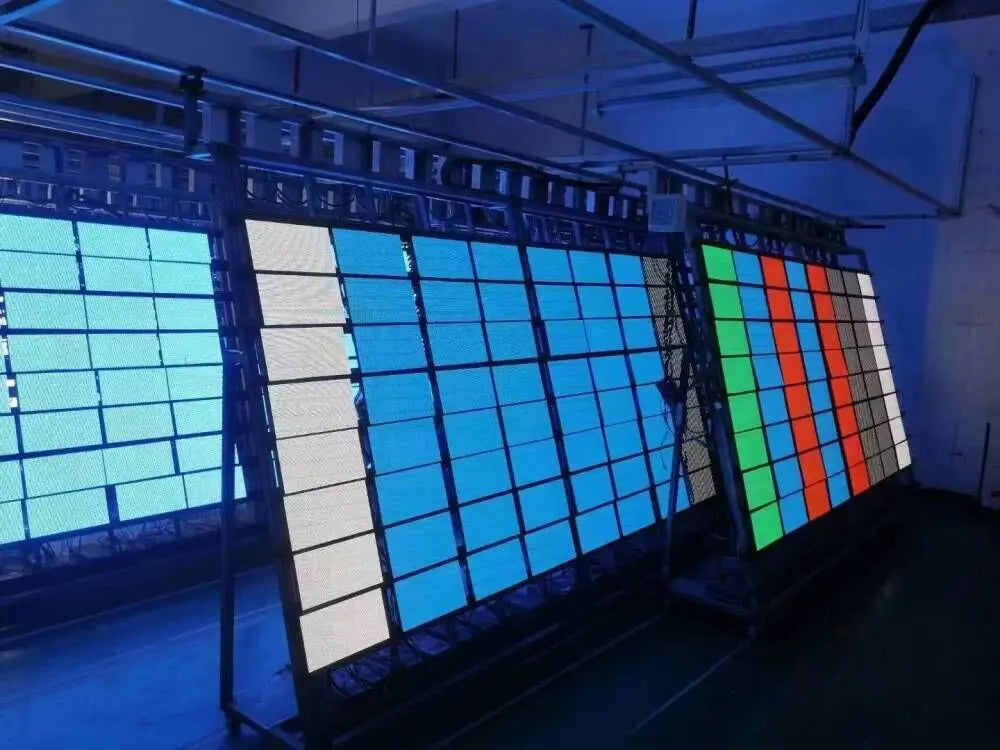

Specification: Video wall
Tube Chip Color: Full Color
Tube chip color: RGB full color
Use: Indoor
Voltage: 5v
is_customized: Yes

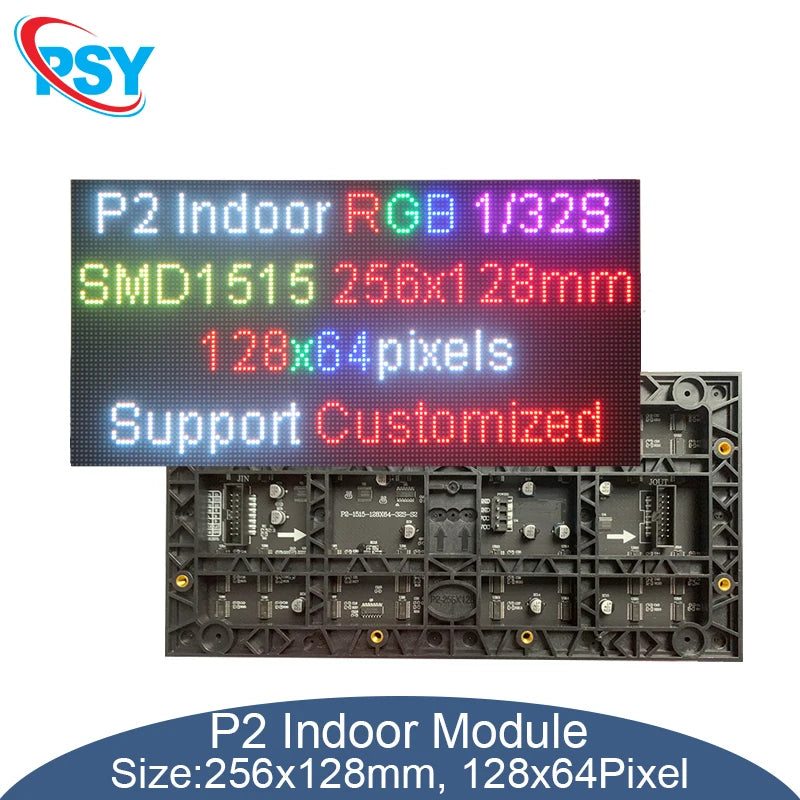

256*128mm P2 LED Screen Panel Module 128*64 Pixels 1/32 Scan Indoor 3in1 SMD RGB Full Color P2 LED Display Panel Module
Note:
About led module

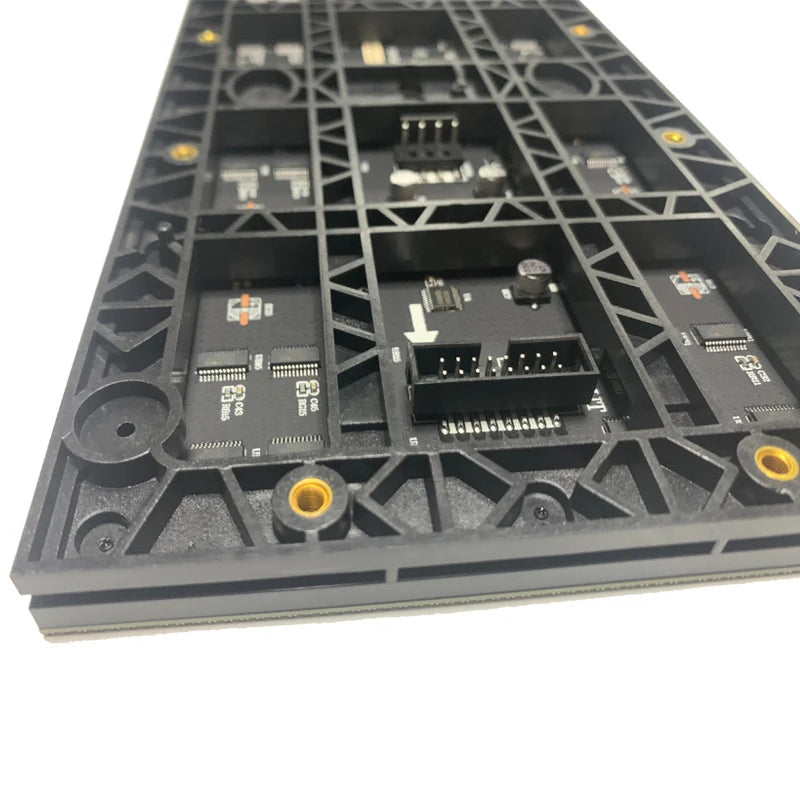

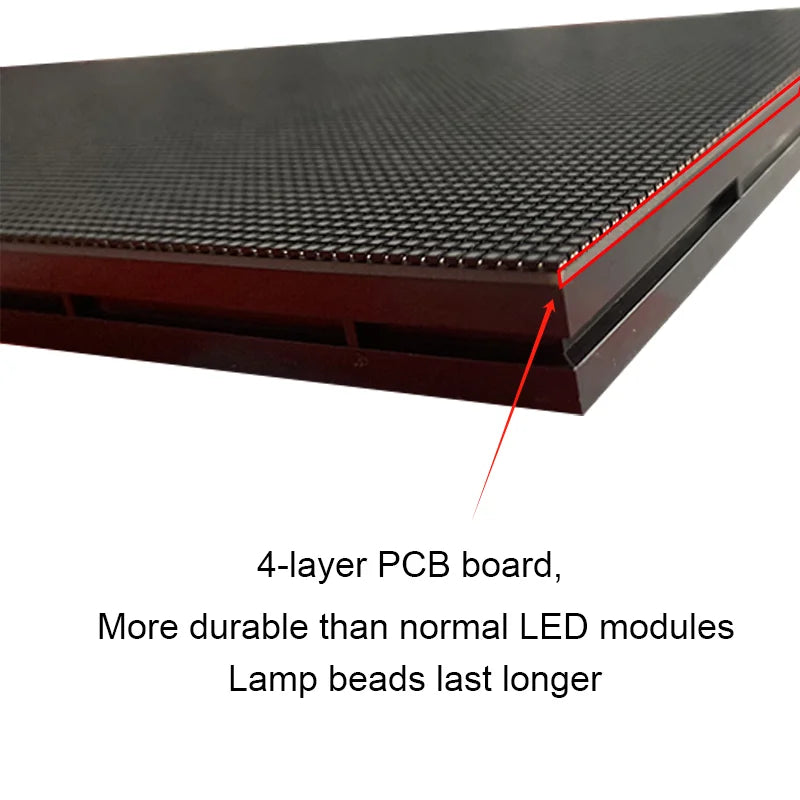

Because ofproduct updating fast, led module (such as the plastic housing, the Chip IC, PCB board, the screw position etc) might bedifferent with the picture. Pls be noted
Differentcompany led module or buy them at different time, they arenot compatible.
if need all led modules work together,buy all led modulesat the same time in one order
Wedon't guaranteeour led module is compatible with customer's own controller

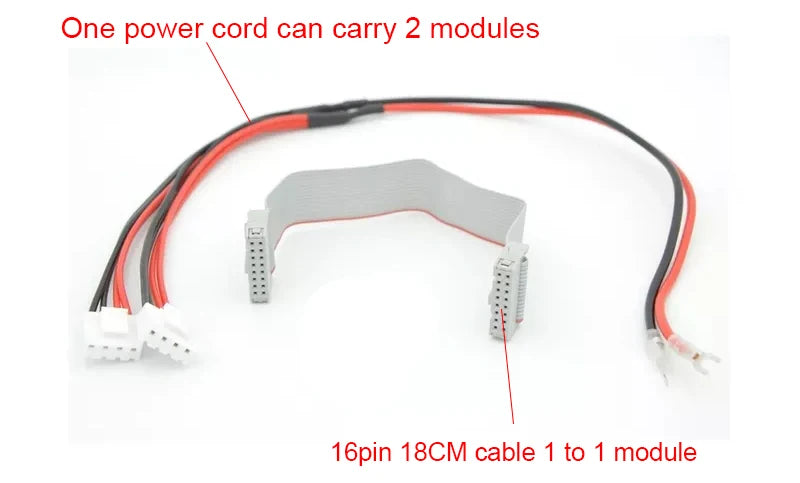

buy "N" pcs led module, send "N" pcs flat cata cable +"N/2" pcs power cable
About remote area fee
The Express cost ( like DHL, Fedex, UPS,TNT)doesn't include remote area fee.
Packing list:
1 pcs P2 Indoor full color led module
1 pcs flat ribbon data cable
1 pcs power cable
Pixel pitch |
2mm |
Module Size |
256X128 mm |
Model Pixel |
128X64Pixels |
lattice density |
250000 dots/square meter |
Pixel form |
1R1G1B SMD1515 |
Best viewing distance |
1m~20 m |
Max power consumption |
1000W/square meter |
Ave power consumption |
300W/square meter |
Max power per module |
15W |
warranty |
1 year |
Drive mode( Optional) |
Constant current 1/32scan |

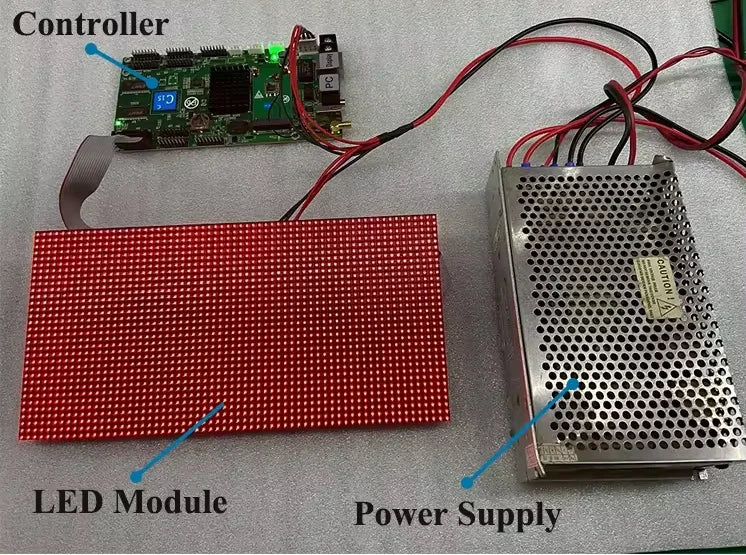

Control system |
DVI card+Full color control card |
Pixel type |
Real pixel |
refresh frequency |
>=3840HZ |
Horizontal View Angel |
> 110 degree |
Working Environment |
Temp:-20Celsius degree-+60Celsius degree
Humidity : 10%-90%
|
Working voltage |
DC 5V |
Lifetime |
>=100000 hours |
Gray scale |
12 bit/ 1 color |
Color display |
manual adjust |
Brightness |
>600-800 cd/square meter |
Blind spot rate |
<0.00001 |
Waterproof Class |
IP43 |
Software |
Support window series system |
Payment and delivery:
After we receive the full payment for the product, we will deliver the goods to the freight forwarder
Note: For remote areas, an additional 30USD remote fee will be charged. Buyers can check whether the zip code is remote with the local FedEx, DHL, UPS, TNT
When we ship, we will declare the value of all goods. Please be aware that this is our responsibility
