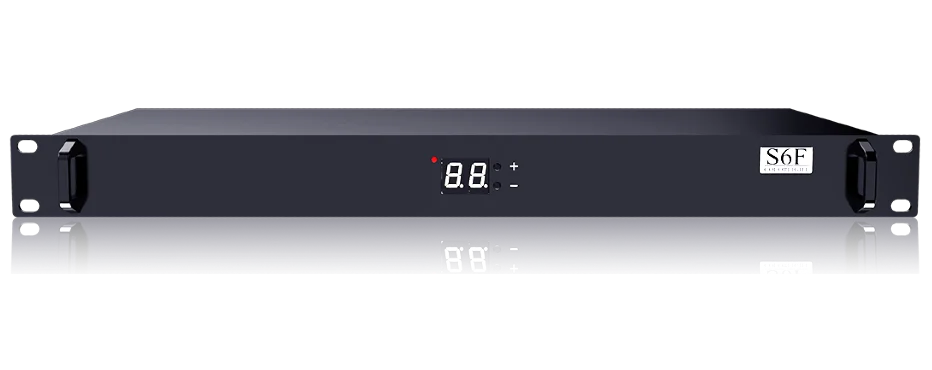

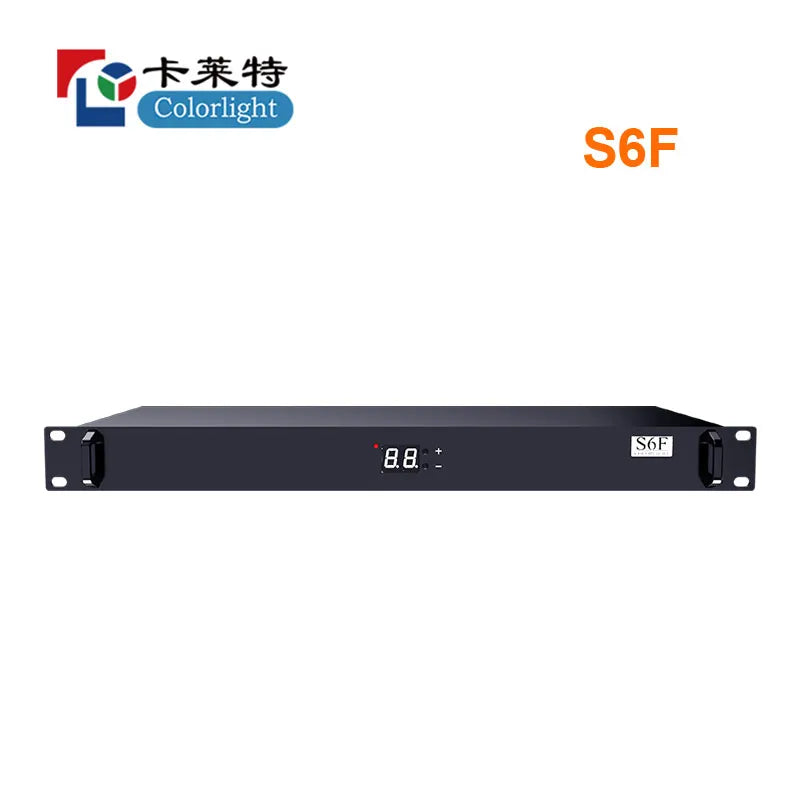

Colorlight S6F LED Video Controller With 6 LAN Ports Output for Full Color LED Screen Control System
Colorlight S6F LED Video Controller With 6 LAN Ports Output for Full Color LED Screen Control System

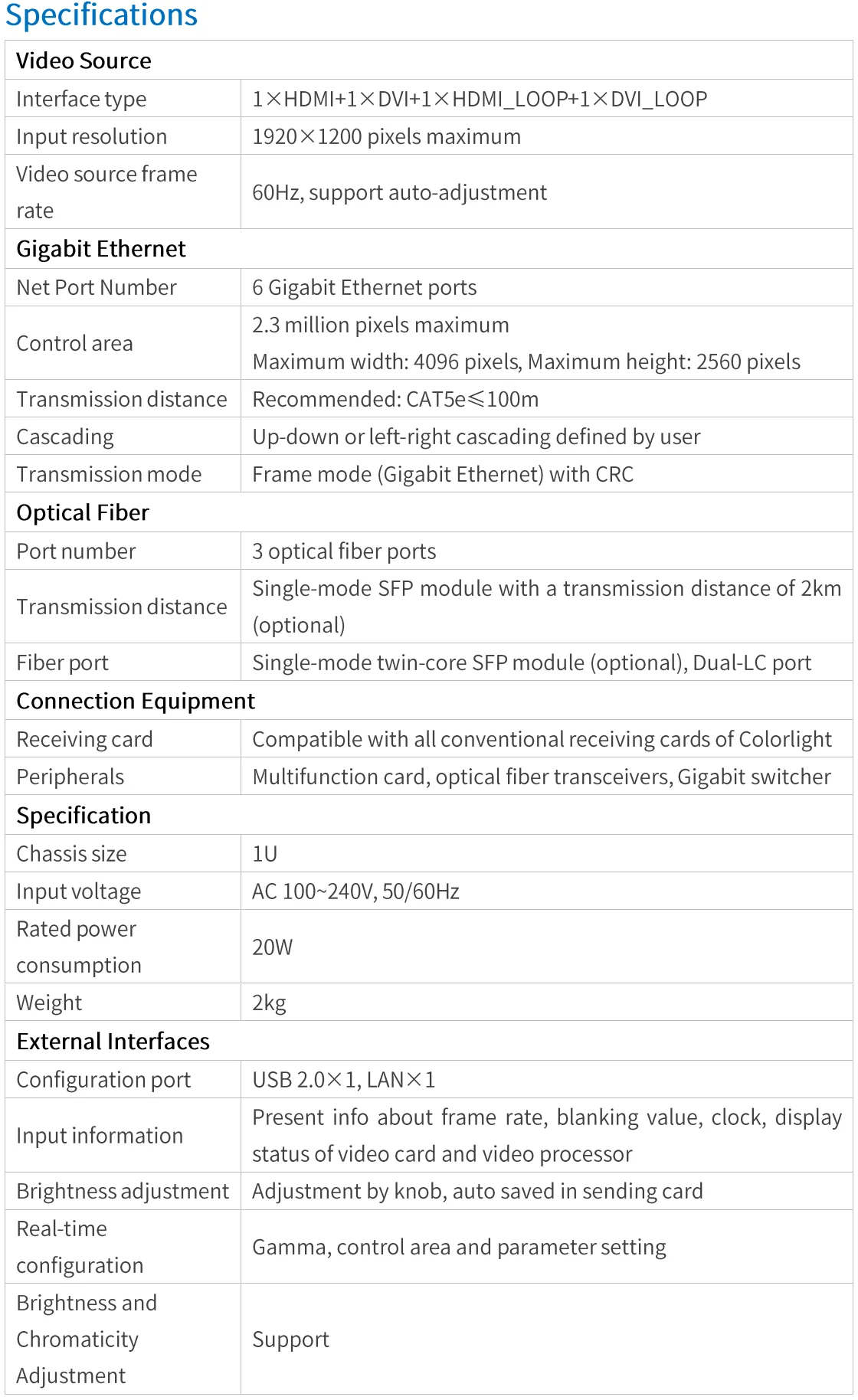

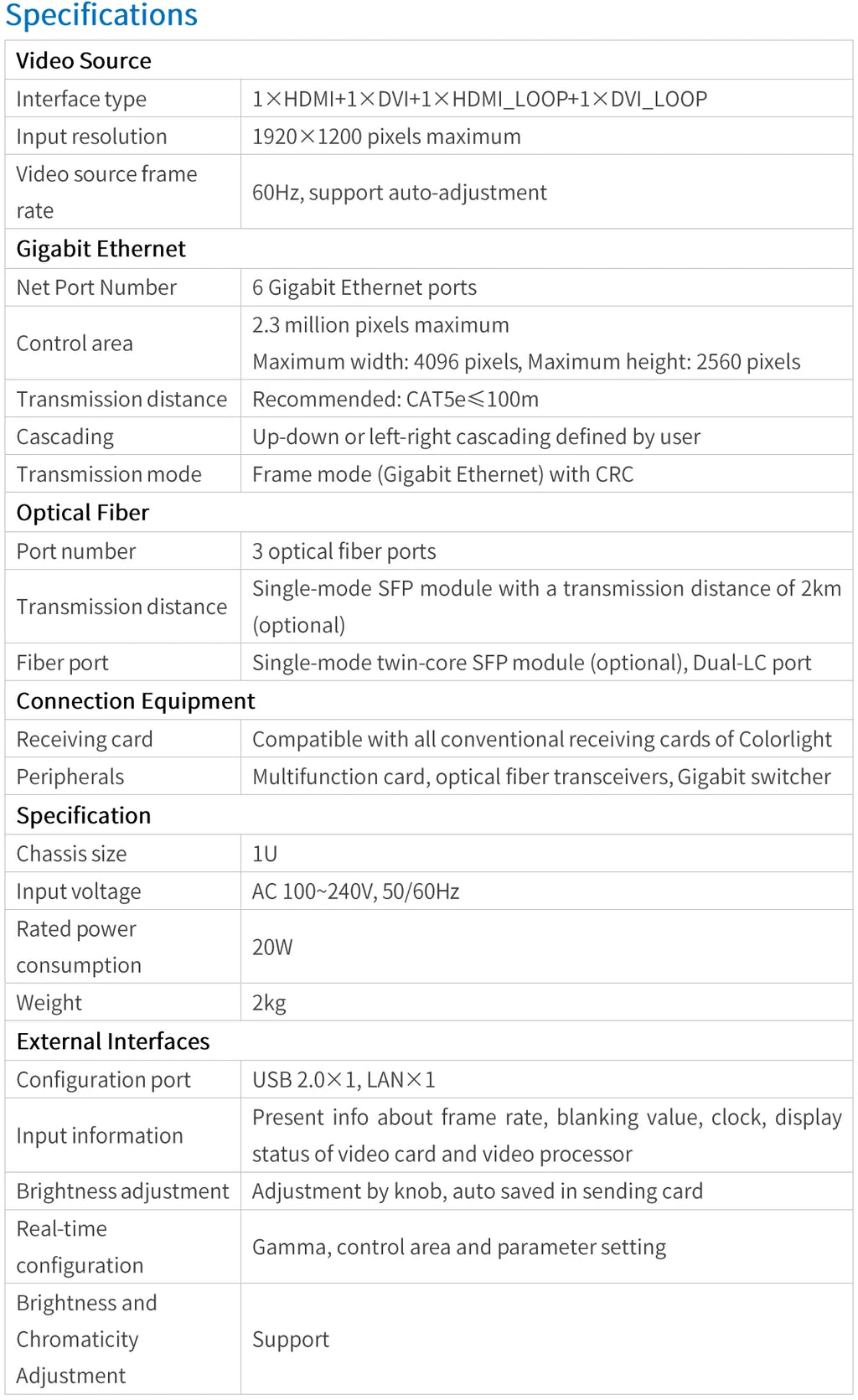

SPECIFICATIONS
Battery Included: No
Brand Name: Amoonsky
Certification: CE,FCC,RoHS
Compatible Audio & Video Equipment Style: Professional Audio Equipment,Amplifier,Display Equipment,player,Stage Equipment
Display Size: customized
Features1: Video input ports including 1 HDMI with loop 1 DVI with loop
Features10: Support improved gray-scale at low brightness
Features11: Support HDCP
Features12: Compatible with all receiving cards, multifunction card, optical fiber transceivers of Colorlight
Features2: Support input resolution up to 1920*1200@60Hz
Features3: 2.3 million pixels Maximum width 4096 pixels Maximum height 2560 pixels
Features4: 6 Gigabit Ethernet outputs support screen arbitrary splicing
Features5: Support 3 optical fiber outputs
Features6: Dual USB2.0 for high-speed configuration and easy cascading
Features7: Support splicing and cascading among several senders with synchronization strictly
Features8: Support control via 100M Ethernet
Features9: Support brightness and chromaticity adjustment
High-concerned chemical: None
Model Number: colorlight S6F
Origin: Mainland China
Package: Yes
Voltage range: USB (5-20V DC)

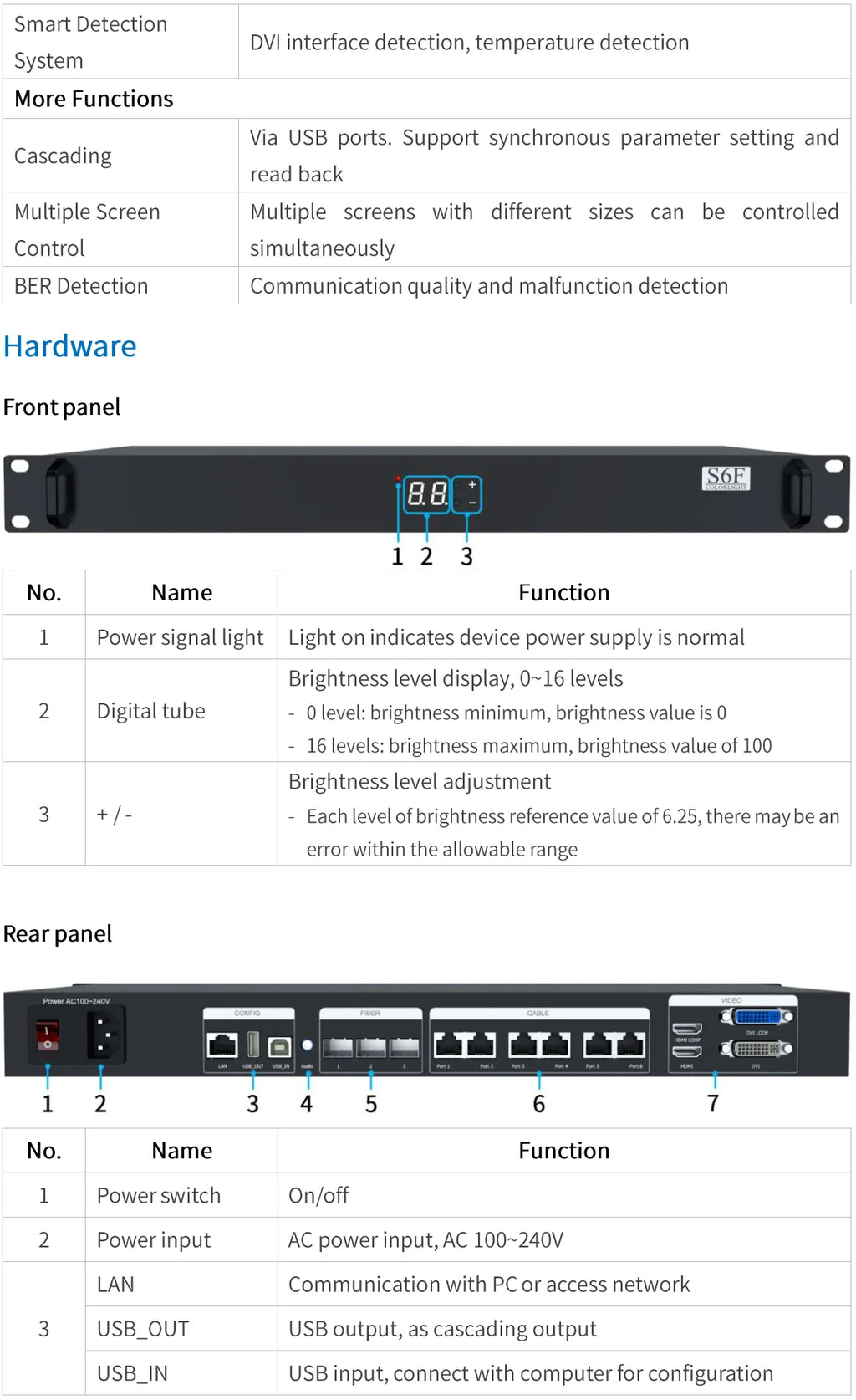

Colorlight S6F LED Video Controller With 6 LAN Ports Output for Full Color LED Screen Control System
Features
• HDMI and DVI signal input ports with HDMI signal loop output port
• Maximum input resolution: 1920*1200 pixels
• Maximum loading capacity: 2.3 million pixels @60Hz
Maximum Width: 4096 pixels, Maximum Height: 2560 pixels
• 4 gigabit Ethernet outputs support screen arbitrary splicing
• 4*2.5 Gbps optical fiber outputs for high speed over long distances
• Dual USB 2.0 for high speed configuration and easy cascading
• Support local area net controlling(100Mbit/s)
• Quick screen setting without computer using front control panel
• One-click DVI/HDMI signal switching
• Improved grayscale performance at low brightness level
• Support HDCP
• Compatible with all series of Colorlight receiving card
